BillyOne - Staging Alberici
Sin apilador

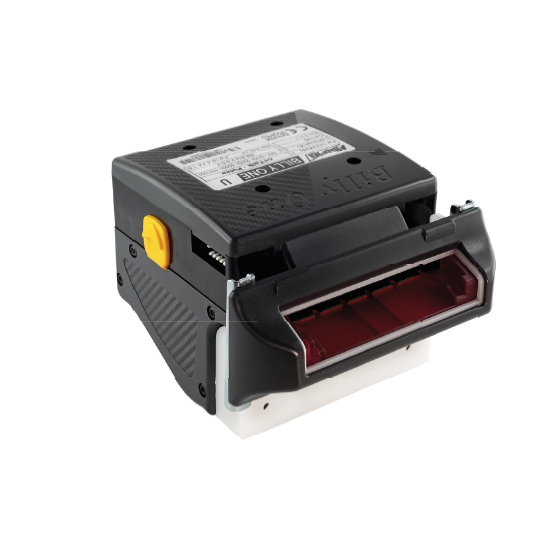

BillyOne

Lector de billetes compacto y fiable. Ofrece alta capacidad de discriminación y seguridad contra fraudes. También disponible en su versión con sensor magnético

Conoce más en BillyOne

BillyOne garantiza excelente selectividad, alta seguridad, velocidad y facilidad de uso y mantenimiento. Ofrece alto porcentaje de aceptación de billetes con anchura máxima de 83 mm, así como altos niveles de seguridad contra fraudes. Validación garantizada con el doble control gracias al sistema espectrógrafo IR y sensores cromáticos, y a un sensor para la detección de la tinta magnética. Los diferentes protocolos lo convierten en un lector versátil que se puede instalar fácilmente en cualquier tipo de máquina. Además, el lector BillyOne está equipado con retroiluminación multicolor para señalar su presencia y su estado de servicio. La estructura y los materiales de fabricación garantizan alta resistencia y larga vida útil.



• Seguridad contra fraudes, con sistemas anti-atasco y anti-pesca
• Admite billetes hasta 83 mm de ancho
• Disponibilidad de programación para diferentes divisas
• Interruptor DIP-switch integrado para la configuración de protocolos
• Estructura simple y práctica que facilita las operaciones de limpieza y mantenimiento
• Actualización del software con el kit de programación universal o USB

• Marco exterior boca lector
• Interfaz para lector
• Conector con 6 salidas

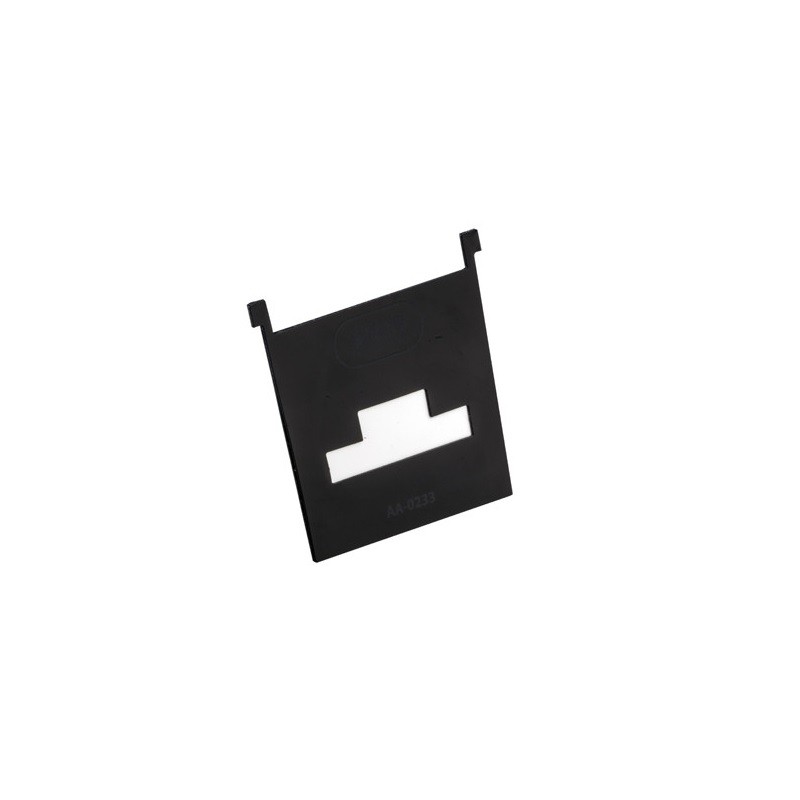

• Tarjeta recalibradora
• Kit de programación universal
• Kit de programación USB

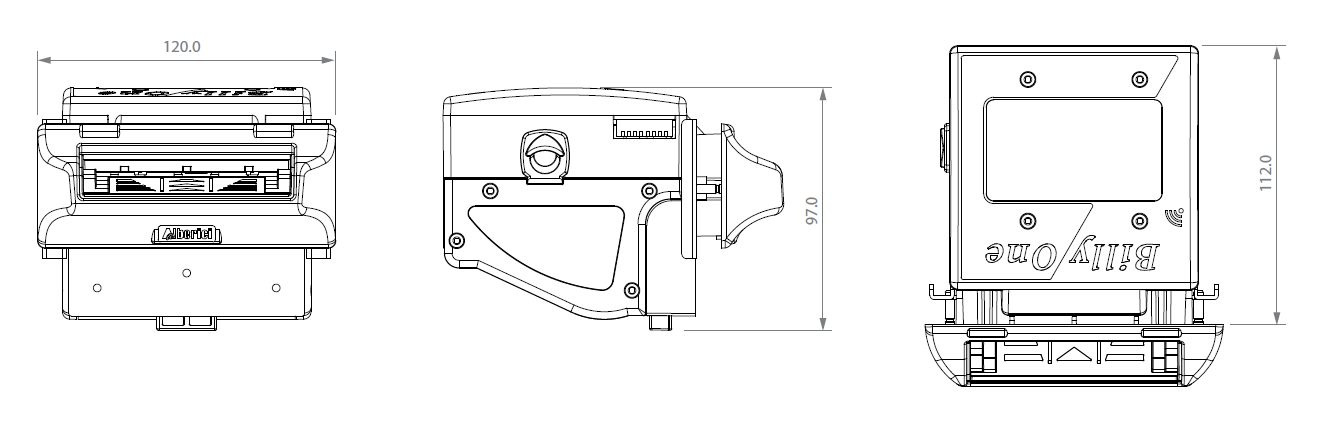

DIMENSIONES



QUOTE BILLYONE 2020



FICHA TÉCNICA

Dimensiones 120 x 97 x 137 mm
Peso 0.576 Kg
Alimentación 12 / 24V (+/- 5%)
Consumo – max 500 mA – 1.2 mA
Consumo en standby 250 mA
Anchura billetes Estándar 62 – 83 mm / dolares 67 mm
Temperatura de funcionamiento 0°C ÷ 50 °C
Velocidad 2 billetes / sec.
Protocolos ccTalk / Pulse / MDB / SAS
Porcentaje de aceptación > 95%
No hay repuestos para este producto.
BillyOne
ccTalk / Pulse LB-LU01
MDB  LB-LM01
Sensor magnético universal LB-LU11
Sensor magnético dolares LB-LU02

Warning: Undefined variable $download_res_it_1 in /var/www/vhosts/alberici.it/staging.alberici.it/wp-content/themes/hello-elementor-child/templates/alberici_prodotti_downloads.php on line 84

Warning: Undefined variable $download_res_it_2 in /var/www/vhosts/alberici.it/staging.alberici.it/wp-content/themes/hello-elementor-child/templates/alberici_prodotti_downloads.php on line 111

Warning: Undefined variable $download_res_it_3 in /var/www/vhosts/alberici.it/staging.alberici.it/wp-content/themes/hello-elementor-child/templates/alberici_prodotti_downloads.php on line 137

Warning: Undefined variable $download_res_it_4 in /var/www/vhosts/alberici.it/staging.alberici.it/wp-content/themes/hello-elementor-child/templates/alberici_prodotti_downloads.php on line 163

Warning: Undefined variable $download_res_it_5 in /var/www/vhosts/alberici.it/staging.alberici.it/wp-content/themes/hello-elementor-child/templates/alberici_prodotti_downloads.php on line 189

Warning: Undefined array key "categoria" in /var/www/vhosts/alberici.it/staging.alberici.it/wp-content/themes/hello-elementor-child/templates/alberici_prodotti_downloads.php on line 476

Warning: Undefined array key "categoria" in /var/www/vhosts/alberici.it/staging.alberici.it/wp-content/themes/hello-elementor-child/templates/alberici_prodotti_downloads.php on line 476

Warning: Undefined array key "categoria" in /var/www/vhosts/alberici.it/staging.alberici.it/wp-content/themes/hello-elementor-child/templates/alberici_prodotti_downloads.php on line 476

Warning: Undefined array key "categoria" in /var/www/vhosts/alberici.it/staging.alberici.it/wp-content/themes/hello-elementor-child/templates/alberici_prodotti_downloads.php on line 476

Warning: Undefined array key "categoria" in /var/www/vhosts/alberici.it/staging.alberici.it/wp-content/themes/hello-elementor-child/templates/alberici_prodotti_downloads.php on line 476

Warning: Undefined array key "categoria" in /var/www/vhosts/alberici.it/staging.alberici.it/wp-content/themes/hello-elementor-child/templates/alberici_prodotti_downloads.php on line 476

Warning: Undefined array key "categoria" in /var/www/vhosts/alberici.it/staging.alberici.it/wp-content/themes/hello-elementor-child/templates/alberici_prodotti_downloads.php on line 476

Warning: Undefined array key "categoria" in /var/www/vhosts/alberici.it/staging.alberici.it/wp-content/themes/hello-elementor-child/templates/alberici_prodotti_downloads.php on line 476

Warning: Undefined array key "categoria" in /var/www/vhosts/alberici.it/staging.alberici.it/wp-content/themes/hello-elementor-child/templates/alberici_prodotti_downloads.php on line 476

Warning: Undefined array key "categoria" in /var/www/vhosts/alberici.it/staging.alberici.it/wp-content/themes/hello-elementor-child/templates/alberici_prodotti_downloads.php on line 476

Manuales

Manual - ENG - BillyOne UN1 ARM 3
Document pdf (3.8 MB)
Iniciar sesión/registrarse para descargar

Software

Software - BillyOne/OryOne
file zip (0.8 MB)
V 2.7.0.2
Iniciar sesión/registrarse para descargar

Instrucciones

Instrucciones - ENG - Actualización BillyOne/OryOne
Document pdf (1.9 MB)
Iniciar sesión/registrarse para descargar

Other files

Firmware - BillyOne/OryOne
File alb (1.0 MB)
[02-2024]
Iniciar sesión/registrarse para descargar
Master - BillyOne/OryOne - Nuevas Libras
File alb (0.0 MB)
v 1.0.0.D
Iniciar sesión/registrarse para descargar
